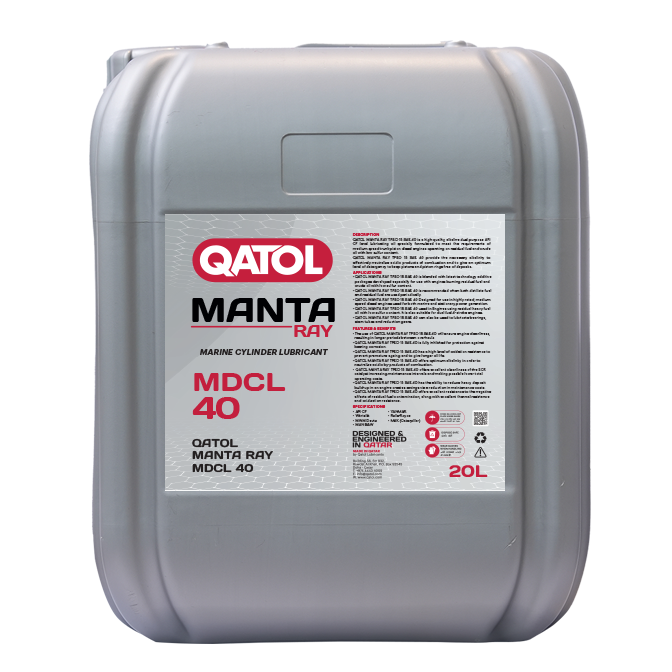

QATOL MANTA RAY MDCL 40

Marine Cylinder Oil specially designed for the latest range of modern Low. Speed 2-stroke Marine Diesel Engines using High Sulphur Fuel Oil.

PRODUCT DESCRIPTION:

QATOL MANTA RAY MDCL 40  is a superior quality Marine Cylinder Lubricant (MCL) designed for modern low speed crosshead diesel engines operating on residual fuels having Sulphur content in excess of 0.5%. This oil is specially developed for diesel engines operating with higher pressures & temperatures and longer strokes. This oil is available in SAE 50 viscosity grade with a BN (Base Number) of 40. This oil possesses outstanding acid neutralizing capability and provides excellent engine cleanliness and durability.

 APPLICATION:

QATOL MANTA RAY MDCL 40 is recommended for cylinder lubrication of the latest, highly rated low speed crosshead marine diesel engines operating on residual fuels with Sulphur contents in excess of 0.5%.

  • The feed rates recommended by the manufacturer should be maintained as the minimum. Higher feed rates may be required during running-in.

ADVANTAGES/BENEFITS:

  • Wear Protection:

Ensures protection against excessive cylinder liner and piston ring wear resulting from the use of high Sulphur containing heavy fuel oils, thus allowing prolonged service intervals.

  • Detergent-Dispersant Properties:

Prevents ring sticking and minimizes deposit formation throughout the combustion chamber exhaust areas.

  • Excellent Lubrication Properties:

Maintains an oil film under varying conditions, thereby reducing frictional wear and preventing scuffing of liners, pistons and rings.



  • Storage Stability:

Stable at ambient temperatures and during long-term storage.

  • Compatibility:

Miscible and compatible with single-phase alkaline diesel cylinder lubricants generally known to the international marine trade.

 KEY PROPERTIES:

PROPERTIES TEST METHOD  TYPICAL VALUES UNIT
Density @ 15 °C ASTM D 4052 0.90 g/ml
Kinematic Viscosity @100 °C ASTM D 445  19.9 mm²/s
Viscosity Index ASTM D 2270 98
Flash point ASTM D 92 246 °C
TBN ASTM D 2896 40 mg KOH/g
Pour Point ASTM D 97 -15 °C
